Fanatec Rim USB Conversion Kit

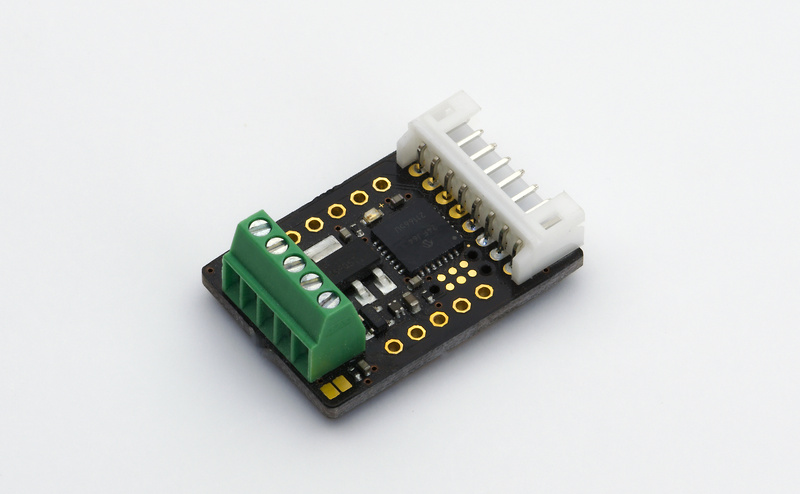

A small PCB that connects to the existing electronics in a Fanatec wheel rim to convert it to a standalone USB joystick controller.

Original Fanatec wheel rims are designed to work with a Fanatec wheel base, however, this device allows them to be used with other force feedback systems.

The PCB can be fitted to the CSW Formula, BMW GT, Porsche 918, Formula V2 and WRC rims, or to the CSW Universal Hub. When ordering for the CSW Universal Hub please select the Fanatec Conversion Cable to be 12 Pin. When ordering for the Formula V2 or WRC, please select 12 pin Y-cable.

All of the buttons, shifters, thumb sticks, encoder, shift lights and LED displays are fully functional and the FFB button acts as a regular push button. As with the original wheel you will be able to set your optimal shift points for the shift LEDS and display different information on the LED displays using the Fanaleds software.

Instructions

	Instructions for the solderless conversion kit (Formula Wheel)

	Instructions for the solderless conversion kit (Universal Hub)

	Instructions for the solderless conversion kit (Porsche 918 RSR Wheel)

Solder version

- PCB

- Pin header

- Screw terminal for USB cable

* USB cable not included

Solderless version

- PCB

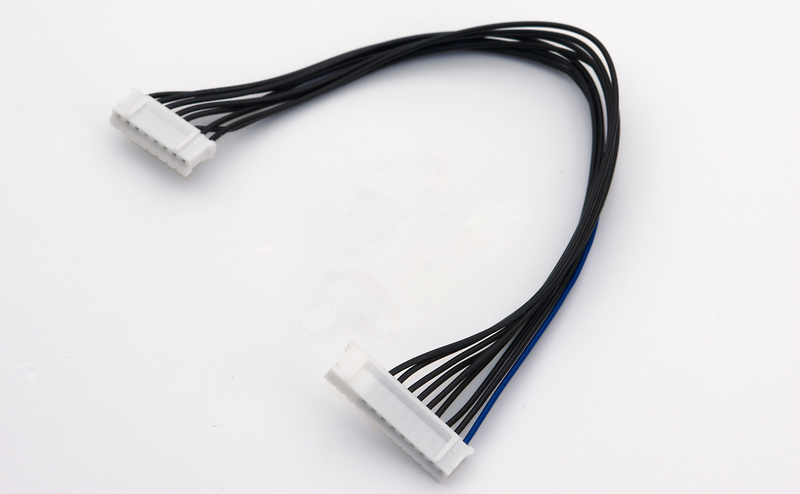

- connecting cable ( Blue )

- Cable Gland

- 2 x cable ties and cable tie saddles.

* USB cable not included

Connection to PC

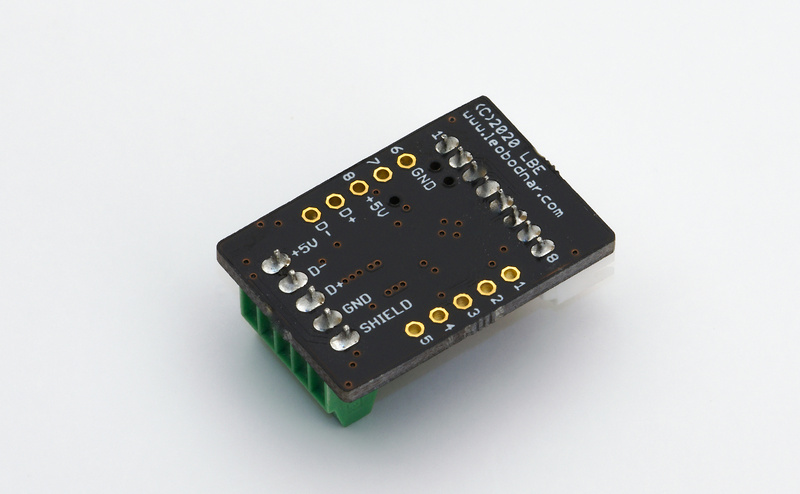

The PCB has four solder tabs for a USB cable and an optional screw terminal which can be soldered for screw in connection.

PLEASE READ BEFORE PURCHASINGYour Fanatec warranty will be voided by fitting this device to your wheel. Good hand skills are required for fitting this kit. By you purchasing this device it is assumed that you possess these necessary skills. You will be fitting this at your own risk. This is a DIY assembly so we are not responsible for any damage you may cause to your steering wheel.

We do not offer a fitting service. This may be offered by other third parties - please search online.

Natively supported as a standard USB joystick interface by Windows  10/ 8/ 7/Vista/XP/2000 32/64 bit and Mac OS X - Forget drivers - just plug it in and it's ready to go. Shift light function currently only works in Windows due to software. Mac support is in progress. Will NOT work on Playstation or Xbox.

Powered by USB bus (+5V - 500mA) so no external power supply is needed

Full-speed 12Mb USB connection.

Compatible with over 30 games including:
Assetto Corsa - DiRT - DiRT2 - DiRT3 - DiRT Showdown - Euro Truck Simulator 2 - F1 2010 - F1 2011 - F1 2012 - F1 2013 - Formula Truck - Game Stock Car - GRID 2 - GT Legends - GTR - GTR 2 - GTR Evolution - iRacing - Kart Racing | PRO - Live for Speed - netKar PRO - OMSI (Omnibus Simulator - Project C.A.R.S. - Race 07 - Race Driver GRID - Race Injection - Race Room 2 - Race Room Racing Experience - rFactor - rFactor2 - Richard Burns Rally - Rigs of Rods - Simraceway - STCC 2 - X-motor Racing

Proudly designed and made in the UK.
