Knob Set for ELMA Dual Encoders - 6mm & 4mm

Knob Set for Dual ELMA E37 Rotary Encoder

- Two plastic knobs to fit shaft sizes 4mm and 6mm

- Available in Grey or Black plastic with finishing cap

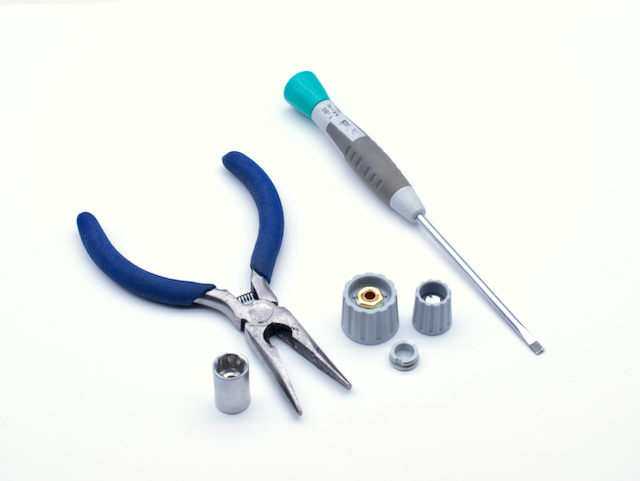

Fixing Instructions

1. Loosen the nut in the larger outer encoder knob.
2. Slide outer encoder knob onto shaft.
3. Tighten outer encoder knob with suitable spanner or carefully with long nose pliers.
4. Loosen screw in inner encoder knob.
5. Slide inner encoder knob on to shaft.
6. Tighten screw head in inner knob.
7. Place end cap on to inner encoder knob.

ELMA E37 Knob Datasheet
