LBE-1321 Fast Risetime Variable Frequency Pulser

Fast 30ps rise time pulse generator with variable frequency output

This device generates pulses with extremely fast rise and fall times - 30±2 picoseconds.

It is used for:

• testing lab instruments and probes frequency bandwidth and rise time
• time domain reflectometry - TDR
• generating wide spectral contents signal with harmonics extending into tens of GHz

Features of the pulser:

• Variable frequency output from 30kHz to 300MHz with 50% duty ratio, 1Hz resolution, 2.5ppm stability
• Rise time and fall time of 30ps
• Output signal amplitude 50mVpp to 1.2Vpp (set via USB.)  DC coupled, negative going
• Pulse output connector: high speed SMA (BNC adaptor is included)
• USB powered - requires 200mA at 5V.  Can be used with USB charger or powerbank
• Each device is individually tested for rise/fall times during production

Supplied with USB-A to USB-C cable, high quality SMA plug-to-plug adaptor, and BNC adaptor (DC-18GHz.)

Designed and made in the UK.

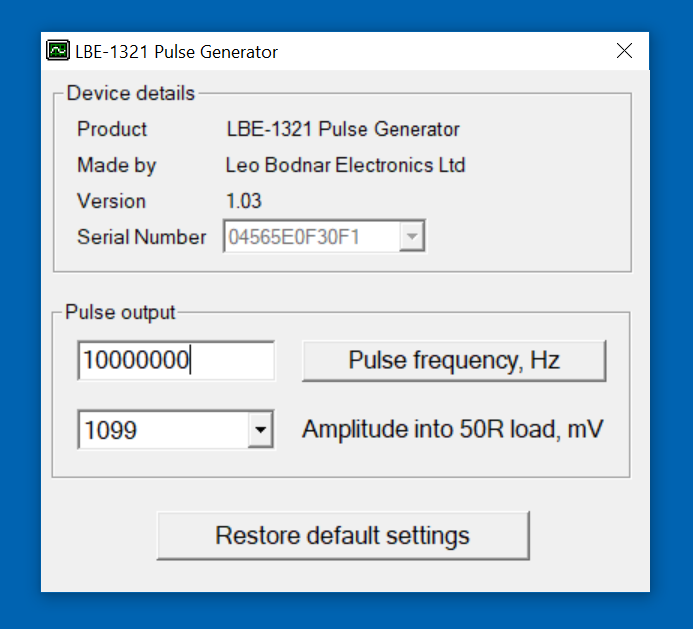

Configuration application for Winodws:

Configuration Software - Click here to download configuration software
