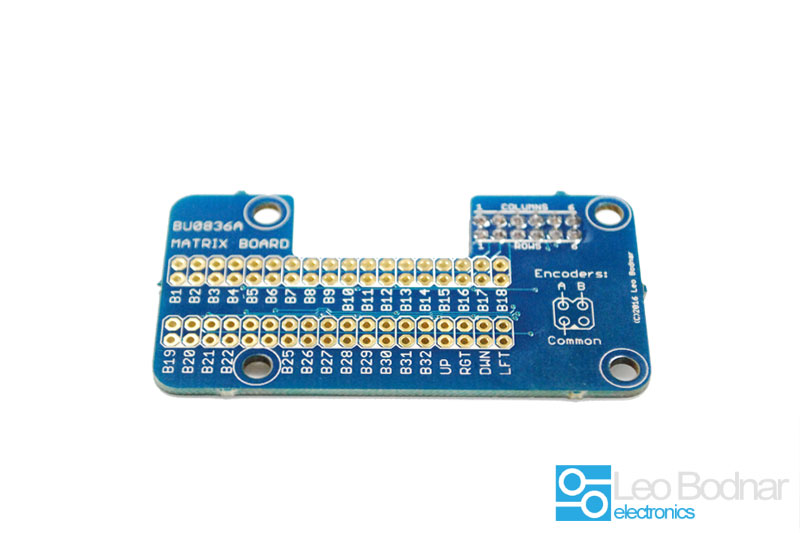

BU0836A Break out Matrix board

A small add on board that provides an easy matrix circuit for the BU0836A

Diodes are already wired for you on the back of the board.

Simple connection of buttons and encoders.

Allows the use of more than 12 buttons easily and without any external diodes.

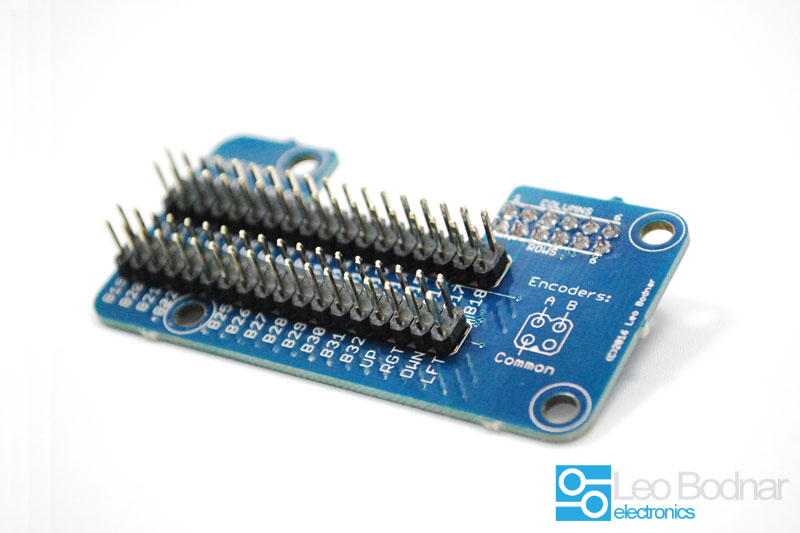

Supplied with connecting socket that plugs into BU0836A and two rows of pin headers.

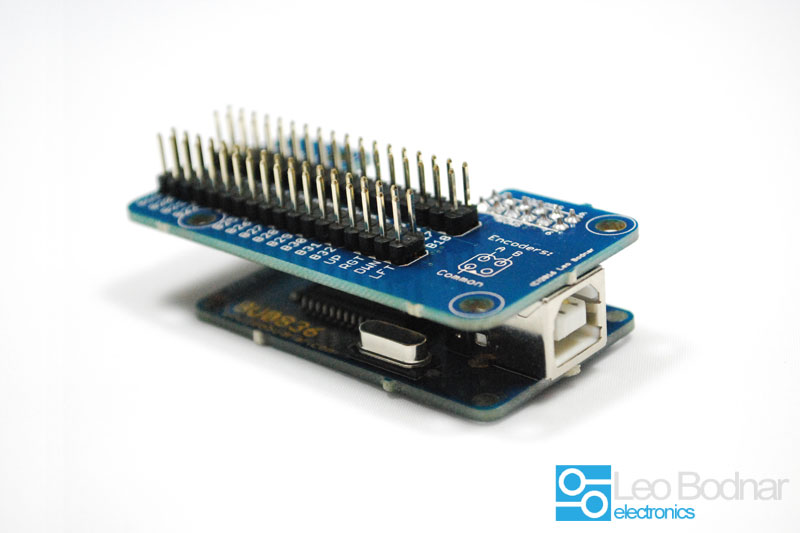

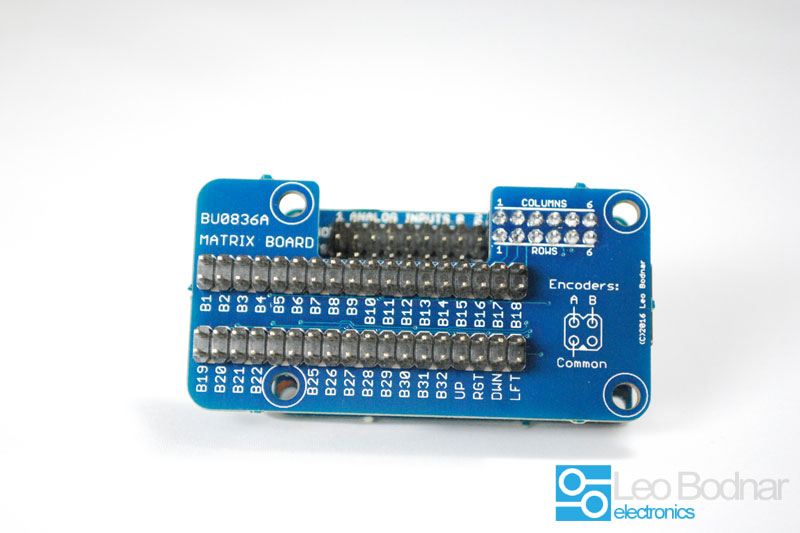

Designed to mount directly on top of the BU0836A board, includes a cut out for the analogue axis. Alternatively, can be attached to BU0836A with 12 way cable.

32 simultaneously active button inputs. Last 4 contacts make up 8-direction point-of-view hat (coolie) switch.

Ideal for compact switch panels.

Note
This board works with any BU0836 (10 bit) or BU0836A (12 bit) USB controller boards. The full height of this board with a BU0836A board is 26mm including the pins on the underside of the board.
Not compatible with BU0836-LC load cell controller.

PCB Templates

Board Outline - DXF

Board Outline - PDF

Full board layout - DXF

Full board layout - PDF
